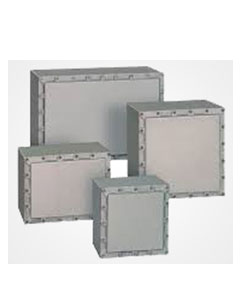

Flameproof Junction Box (Gas group-IIA, IIB) Multiple Way
- Type of Protection: Ex-d
- Material: Cast Aluminium Alloy LM6
- Flameproof: Zone 1 & 2
- Gas Group: IIA,IIB
- Weatherproof: IP 66
- Temp Class: T6
- Finish: Light Grey to Shade 631
- Gasket: Neoprene
- Cable entry: As per Customer Request
- Box size:
1. 300MM X 300 MM X150MM, 2. 380MM X 380 MM X 150MM,
3. 470MM X 470MM X 150MM, 4. 760MM X 530 MM X150MM - Inner Depth:
1.150MM, 2. 240MM, 3. 300MM

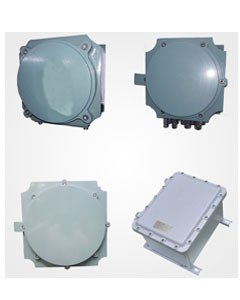

Flameproof Junction Box (Gas group-IIC) Multiple Way
- Type of Protection: Ex-d
- Material: Cast Aluminium Alloy LM6
- Flameproof: Zone 1 & 2
- Gas Group: IIA, IIB, IIC
- Weatherproof: IP 65
- Finish: Light Grey to Shade 631
- Gasket: Neoprene
- Cable entry: As per Customer Request
- Box size:
1. 175MM X 175 MM X120MM, 2. 275MM X 275 MM X 150MM,
3. 375MM X 375MM X 150MM, 4. 500MM X 500 MM X150MM - Inner Depth:
1.150MM, 2. 200MM, 3. 250MM
