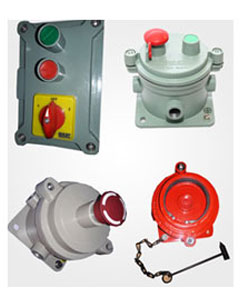

Flameproof Direct Entry Control Station
- Type of Protection: Ex-d
- Material: Cast Aluminium Alloy LM6
- Flameproof: Zone 1 & 2
- Gas Group: IIA,IIB,IIC
- Weatherproof: IP 66
- Temp Class: T6
- Finish: Light Grey to Shade 631
- Gasket: Neoprene
- Cable entry: 4 Nos. 3/4” ET Entry

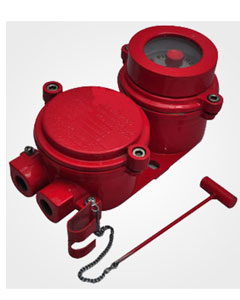

Flameproof Fire Alarm/Manual Call Point
- Type of Protection: Ex-d
- Material: Cast Aluminium Alloy LM6
- Flameproof: Zone 1 & 2
- Gas Group: IIA,IIB,IIC
- Weatherproof: IP 66
- Temp Class: T6
- Finish: Light Grey to Shade 631
- Gasket: Neoprene
- Cable entry: 2 Nos. 3/4” ET Entry
- Push Button: 1 No. Mushroom Head Push Button Red Colour With Glass & hammer with chain

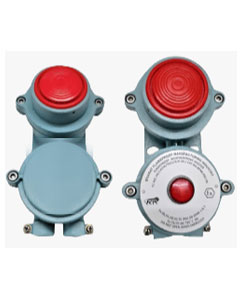

FLP/WP Hooter WITH FLASHER (230V AC or 24V AC/DC)
- Type of Protection: Ex-d
- Material: Cast Aluminium Alloy LM6
- Flameproof: Zone 1 & 2
- Gas Group: IIA,IIB,IIC
- Weatherproof: IP 66
- Temp Class: T6
- Finish: Light Grey to Shade 631
- Gasket: Neoprene
- Cable entry: 2 Nos. 3/4” ET Entry
- Noise Level: 120db

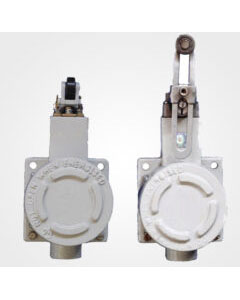

FLP/WP Limit Switch (Roller/Lever type)
- Type of Protection: Ex-d
- Material: Cast Aluminium Alloy LM6
- Flameproof: Zone 1 & 2
- Gas Group: IIC
- Weatherproof: IP 66
- Temp Class: T6
- Finish: Light Grey to Shade 631
- Gasket: Neoprene
- Cable entry: 1 Nos. 3/4” ET Entry
- Limit Switch: 1NO+1NC, 10A 500V

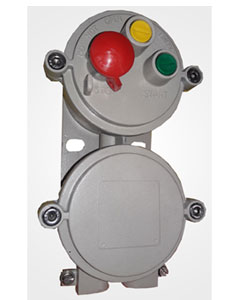

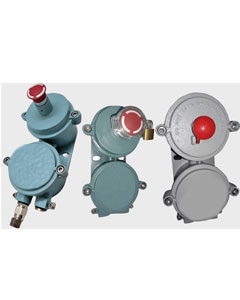

FLP/WP Stop Push Button Station
- Type of Protection: Ex-d
- Material: Cast Aluminium Alloy LM6
- Flameproof: Zone 1 & 2
- Gas Group: IIA,IIB,IIC
- Weatherproof: IP 66
- Temp Class: T6
- Finish: Light Grey to Shade 631
- Gasket: Neoprene
- Cable entry: 2 Nos. 3/4” ET Entry
- Stop PB: Red Colour, Mushroom Head, Pad Lockable or Key Lockable type-NC CONTACT

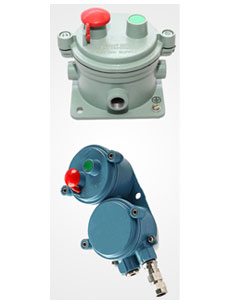

FLP/WP Start/Stop Push Button Station
- Type of Protection: Ex-d
- Material: Cast Aluminium Alloy LM6
- Flameproof: Zone 1 & 2,IIA,IIB,IIC as per IS/IEC 60079-1:2007
- Weatherproof: IP 66 as per IS/IEC 60529:2001
- Finish: Light Grey to Shade 631 of IS:5 (Epoxy Powder Coated)
- Gasket: Neoprene
- Cable entry: 2 Nos. 3/4” ET Entry
- Start PB: Green Colour, Momentary Type
- Stop PB: Red Colour, Mushroom Head, Pad Lockable or Key Lockable type

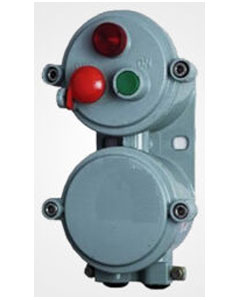

FLP/WP Start/Stop Push Button Station with Indicating Lamp
we are a leading flameproof start/stop Push button station manufacturer. We aim to provide you with products to provide safety in hazardous environments.
Our stop-push button station has an Ex-d type of protection which makes them ideal for usage in Flameproof classified zone 1 & 2 areas. These are made up of high-quality cast aluminum alloy LM6.
Our flameproof push button station can withstand different types of gases, including IIA, IIB, and IIC, and has an IP 66 rating. It comes in a light grey shade 631 finish, giving it a modern and stylish look.
We use neoprene gaskets to seal our STOP PUSH BUTTON STATION, protecting it from moisture and other elements. Our PUSH BUTTON is designed with two 3/4” ET entries for cable entry, making it easy to install and maintain.
These come in red-colored mushroom heads that can be a padlock or key lock type-NC CONTACT. It is designed to stop machinery or equipment when needed, providing an extra layer of safety in hazardous environments.
Our aim at Bharat Flameproof is to be committed to providing our customers with high-quality flameproof products. We take pride in providing many reputed brands with our high-quality, long-lasting Flameproof STOP PUSH BUTTON STATION.
Ensure that your workspace is safe and secure by using our stop-push button requirements today!

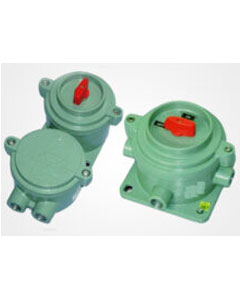

FLP/WP 16A DP ON/OFF Rotary Switch
- Type of Protection: Ex-d
- Material: Cast Aluminium Alloy LM6
- Flameproof: Zone 1 & 2,IIA,IIB,IIC as per IS/IEC 60079-1:2007
- Weatherproof: IP 66 as per IS/IEC 60529:2001
- Finish: Light Grey to Shade 631 of IS:5 (Epoxy Powder Coated)
- Gasket: Neoprene
- Cable entry: 2 Nos. 3/4” ET Entry
- Switch: 16A/32AMP/25AMP DP ON/OFF Rotary Switch

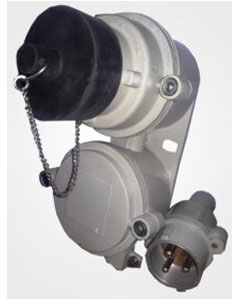

FLP/WP Switch Socket Combine
- Type of Protection: Ex-d
- Material: Cast Aluminium Alloy LM6
- Flameproof: Zone 1 & 2
- Gas Group: IIA,IIB,IIC
- Weatherproof: IP 66
- Temp Class: T6
- Finish: Light Grey to Shade 631
- Gasket: Neoprene
- Cable entry: 2 Nos. 3/4” ET Entry
- Switch: 16A/25AMP/32AMP Switch
- Rating: 230VOLT /415 VOLT
- Pin: 3 PIN (2P+E) 4 PIN (3P+E),5 PIN(4P+E)

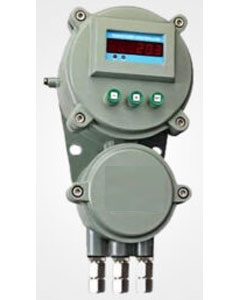

Flameproof Temp Controller
- Type of Protection: Ex-d
- Material: Cast Aluminium Alloy LM6
- Flameproof: Zone 1 & 2
- Gas Group: IIA,IIB,IIC
- Weatherproof: IP 66
- Temp Class: T6
- Finish: Light Grey to Shade 631
- Gasket: Neoprene
- Cable entry: 3 Nos. 3/4” ET Entry

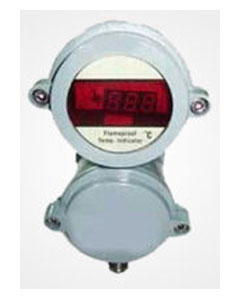

Flameproof Temperature- Indicator Enclsoure
- Type of Protection: Ex-d
- Material: Cast Aluminium Alloy LM6
- Flameproof: Zone 1 & 2,IIA,IIB,IIC as per IS/IEC 60079-1:2007
- Gas Group: IIA,IIB,IIC
- Weatherproof: IP 66 as per IS/IEC 60529:2001
- Finish: Light Grey to Shade 631 of IS:5 (Epoxy Powder Coated)
- Gasket: Neoprene
- Cable entry: 2 Nos. 3/4” ET Entry
- Range: 0 TO 200 DEGREE , 0 TO 400 DEGREE
FLP/WP Forward/Reverse/Stop Push Button Station
- Type of Protection: Ex-d
- Material: Cast Aluminium Alloy LM6
- Flameproof: Zone 1 & 2
- Gas Group: IIA,IIB,IIC
- Weatherproof: IP 66
- Temp Class: T6
- Finish: Light Grey to Shade 631
- Gasket: Neoprene
- Cable entry: 2 Nos. 3/4” ET Entry
- Forward PB: Green Colour-NO CONTRACT
- Reverse PB: Yellow Colour, - NO CONTRACT
- Stop PB: Red Colour, Mushroom Head, Pad Lockable or Key Lockable type- NC CONTRACT
